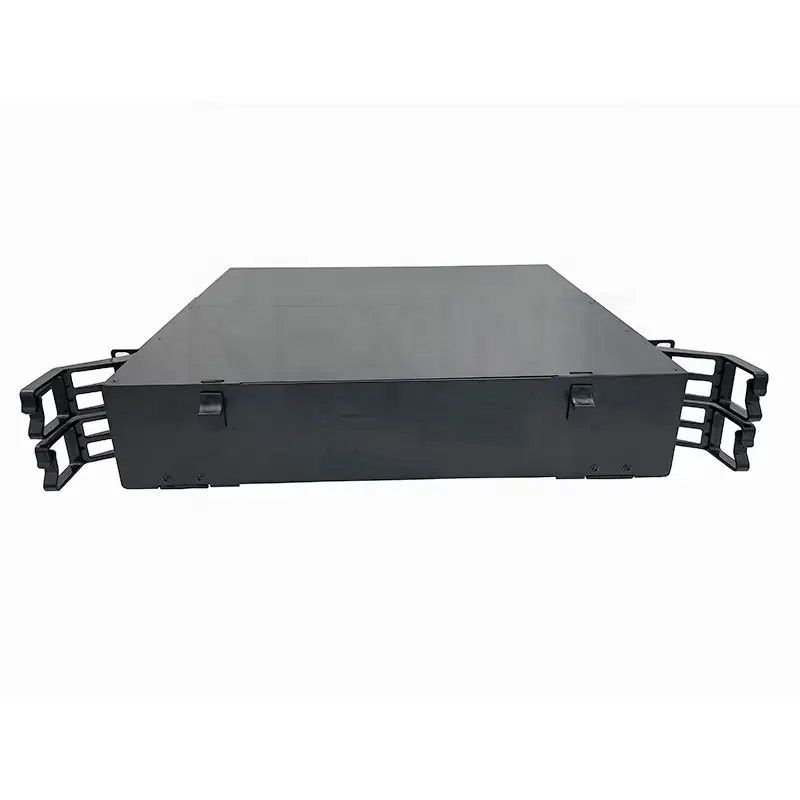

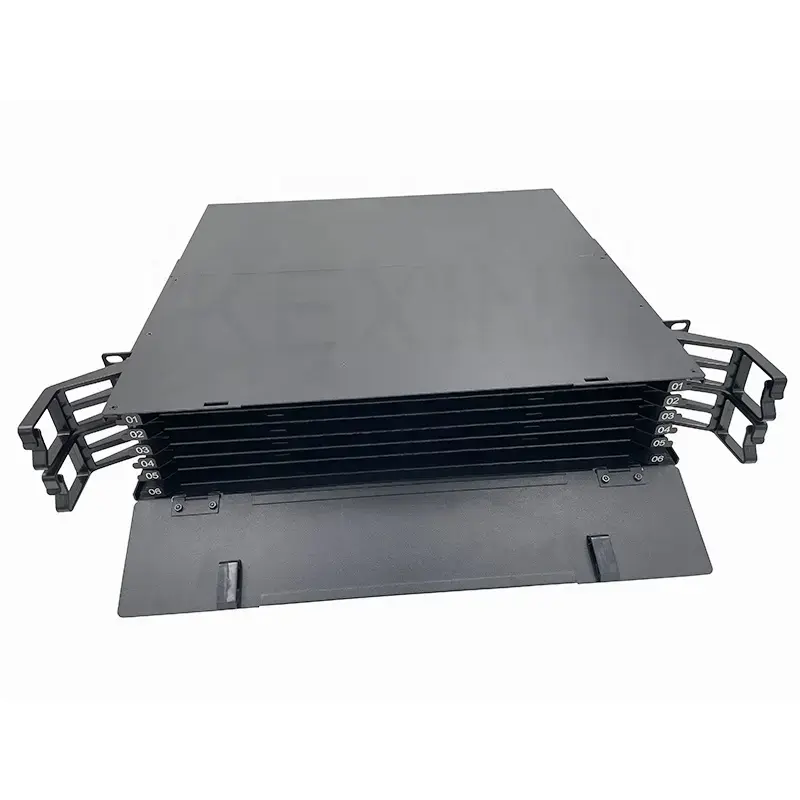

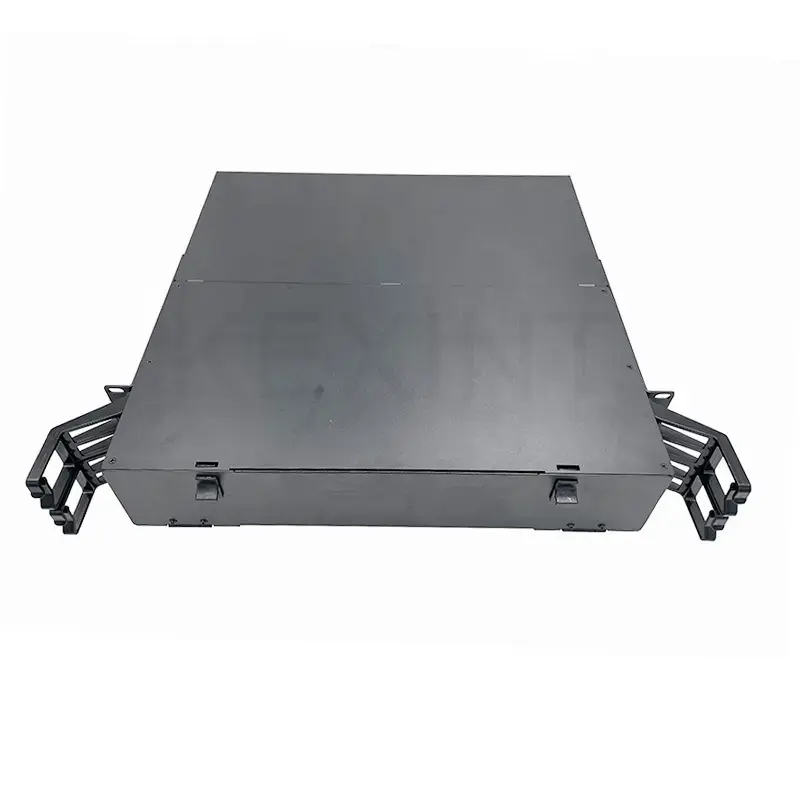

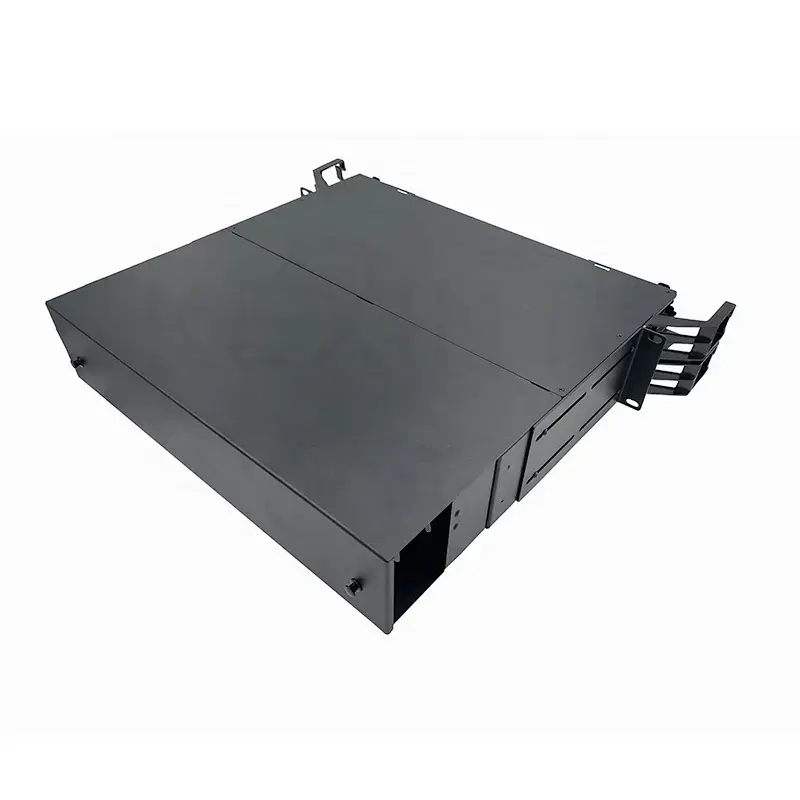

2U 24 Cassette HDFC
2U Slim MPO Cassette 288 Core High Density Fiber Chassis
Designed for use with the CableFi GRID System but can be used for any installation.

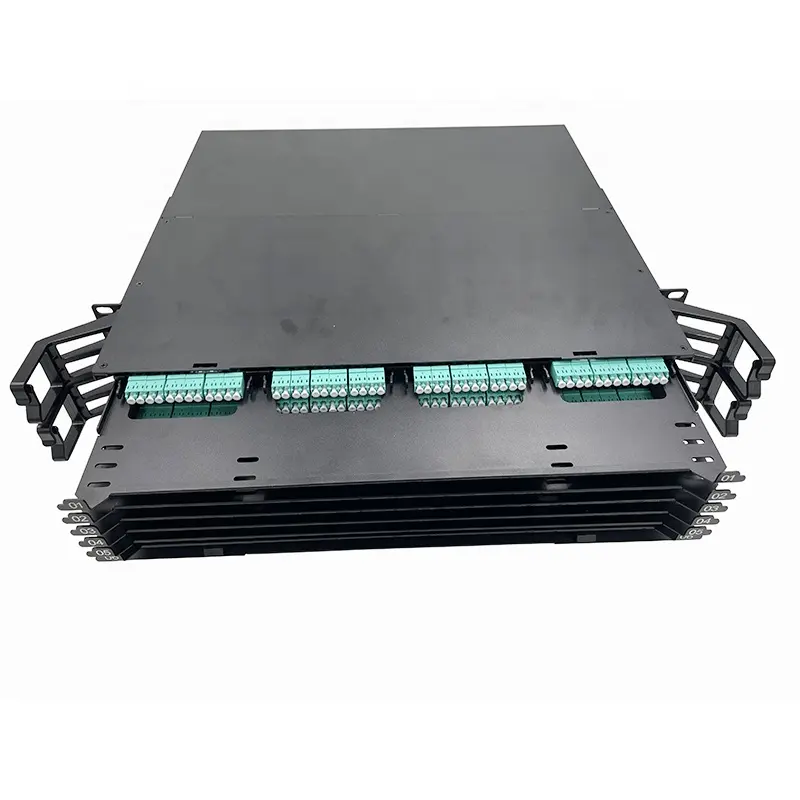

The HDFC holds 24 slim MPO cassettes with a max core count of 288.
The HDFC holds 24 slim MPO cassettes with a max core count of 288.
MPO cassettes are the gold standard for datacenters and when used in the CableFi GRID system they can reduce your fiber termination per cassette to 10 mins when using the AFL FuseConnect MPO splice on connector and even more so when using preterminated fiber.
Model Number | CBL-2UMPOHDFC-24 |
Casset Type | Slim |
Connector Type | MPO - LC |
Capacity | 24 Slim Cassetts 288 Core |
Size | 485*465*88mm |
Weight | 7.0Kgs |
Certification | CE/ROHS/ISO9001 |
Warranty | 25 Year |
